87630368

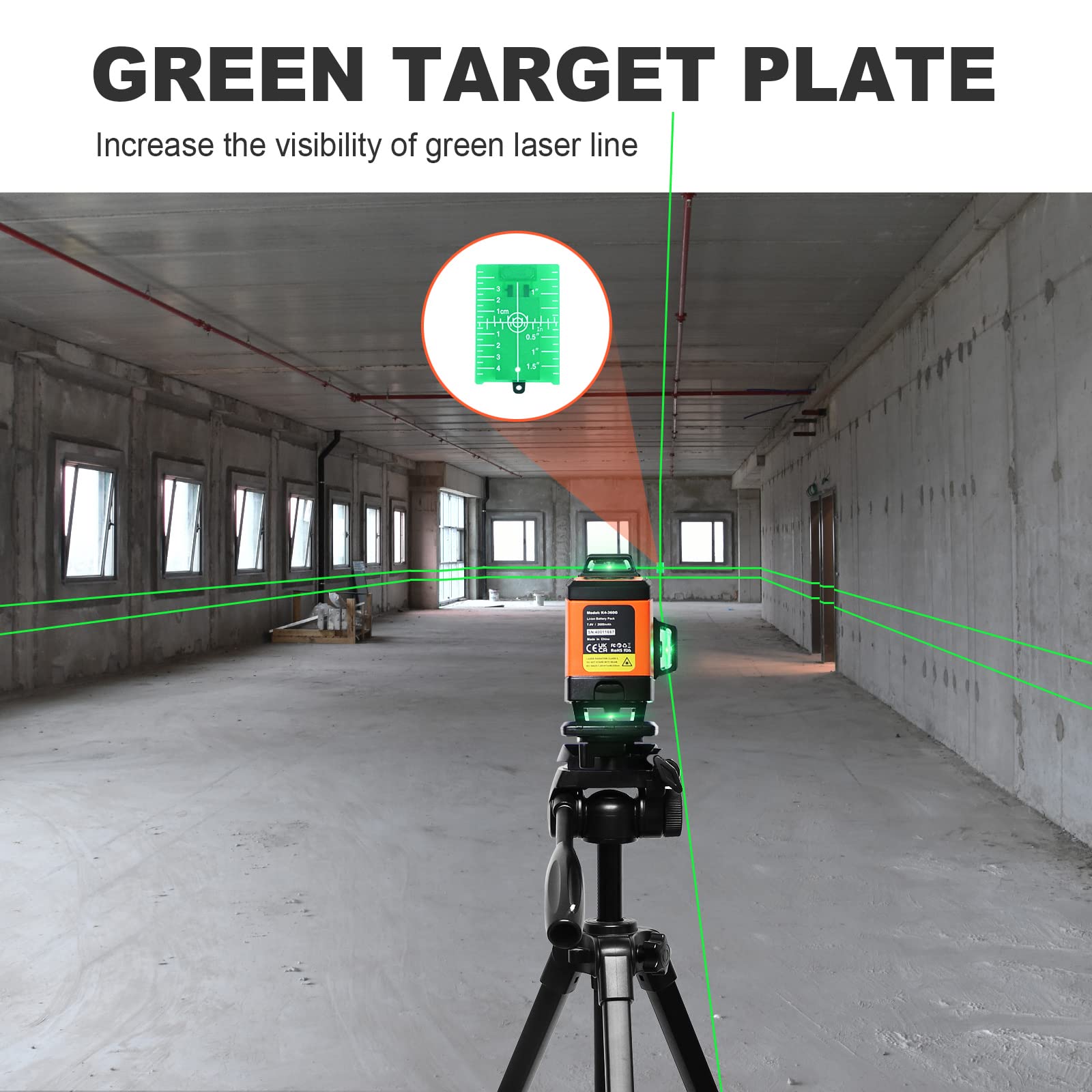

Why choose DOVOH laser level? Accuracy! Accuracy Leads To First-class Level DOVOH laser level features an unique shockproof pendulum framework to ensure consistently high accuracy.DOVOH laser level features an overmould rubber housing designed to protect the pendulum and ensure it maintains its accuracy.Based on metal blade axicon technology, DOVOH use high-precision axicon component to reflect high accuracy of leveling laser line. Package Include: 1 x 4D Laser Level 1 x Magnetic Bracket 1 x Lifting Base 1 x Green Target Plate 2 x Li-ion Batteries 1 x User Manual 1 x Remote Control 1 x Type-C Cable, Adapter, Charger Specification Model K4-360G Laser Class Class Ⅱ Working Range(300LUX) 66ft/20m Working Range(w/ DR1 receiver) 197ft/60m Working Time w/ 4 laser lines 26 hours Working Time w/ 8 laser lines 16 hours Working Time w/ 12 laser lines 8 hours Working Time w/ 16 laser lines 6 hours Laser Type 520nm, <1mw Self-leveling Range ±4° Self-leveling Time < 4 seconds Leveling Accuracy ±1/13 in. at 33ft (±2mm/10m) Thread Mount 1/ 4”-20 IP Rating IP54 (Water & Dust proof) Battery 7.4V 2600mAh Li-ion Battery Power Adapter 5V=1A Self-Leveling & Manual Mode Unlocked the pendulum to enter self leveling mode.Locked the pendulum then press POWER button to enter manual mode.On self-leveling mode, the 4d laser level will give alarm when the it is out of leveling angle (±4°). On manual mode, the laser line can be locked at any angle. Target Plate & Pulse Mode This laser level 4d include a green target plate, the special reflective film can increase the visibility of the green beam.The target plate is also a good partner for drop ceiling application.DOVOH K4-360G 16 lines laser level support pulse mode, it works with DOVOH DR1 laser receiver. Durable & Reliable This durable laser level feature IP54 waterproof, dustproof, shock-resistant.DOVOH will conduct drop test for each batch of laser levels with 0.2% of sampling rate.With durable pendulum structure, DOVOH laser levels will keep high accuracy performance for long time use. Metal Protective Cover The laser level 4x360 use metal protective cover which is made from aluminium alloy material.The 360 laser level protective cover will protect the laser from rain or dust.The protective cover is thin which is perfect for tiling wall or ceiling. Multifunctional Magnetic Bracket This 360 laser level includes an useful magnetic bracket for various installation methods: Install on a tripod with 1/4" or 5/8" port.Adhere to metal Magnetically.Clip on a thin flat board.Hanging on a Nail. 5 Years Accuracy Commitment DOVOH is committed to provide high accuracy and durable laser level for long term use.DOVOH will repair or replace the laser levels with unqualified accuracy caused by normal use in 5 years.DOVOH will provide 2 years free service for any quality issue. DOVOH Accuracy Calibration Process DOVOH performs four processes of accuracy calibration and inspection to ensure highest level of accuracy and consistency across the product line. All DOVOH laser levels must strictly meet accuracy standard of ±1/13 in. at 33ft (±2mm/10m). This level of accuracy is crucial for tasks that require precise measurements and leveling, such as construction, surveying, and carpentry. DOVOH Accuracy Inspection Process DOVOH employs an automated system designed to inspect the accuracy of the laser levels comprehensively. This system involves advanced technology and machinery specifically tailored to assess the laser levels' precision.By adopting this automatic accuracy inspection system, DOVOH enhances the quality commitment process for the laser levels. It ensures that each unit meets the specified accuracy standards and maintains consistency in product quality. DOVOH Accuracy Calibration Process Each DOVOH laser level includes a copper cylinder to increase the stability of the core assembly. It can help reduce vibrations and fluctuations, which can be crucial for maintaining precise measurements and leveling.In this process, we adjust the balance weight from various direction to calibrate the laser line accuracy. The laser line of all direction will be measured and displayed on screen to inspect the accuracy. H3-360G-KIT K4-360G P4-360G P3-360G Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 44 4.6 out of 5 stars 209 4.3 out of 5 stars 35 4.3 out of 5 stars 35 Price $349.99$349.99 $179.99$179.99 $299.99$299.99 $249.99$249.99 Number of Planes 3 4 4 3 Brightness Super High Standard High High Working Range(300LUX) 98ft/30m 66ft/20m 98ft/30m 98ft/30m Working Range (w/ DR1 receiver) Up to 400ft/122m 197ft/60m Up to 400ft/122m Up to 400ft/122m Core Assembly Design Double Shockproof Standard Double Shockproof Double Shockproof Magnetic Bracket Standard Standard Heavy Duty Heavy Duty Threaded Mount 1/4" and 5/8" 1/4" 1/4" (with 5/8" Converter) 1/4" (with 5/8" Converter) Battery Charge in Device ✓ X ✓ ✓ Case Hard Toolbox Carrying Bag Hard Toolbox Hard Toolbox Conclusion High Visibility, Durable, Full-equipped Accessories Cost-effective, Versatile Durable, Full-equipped Accessories, Versatile Durable, Full-equipped Accessories
【Overmold Rubber Housing】DOVOH 4d laser level features an overmold rubber housing, providing enhanced durability and shock resistance. This robust design protects the tool from impacts and harsh working conditions, ensuring reliable performance and longevity on the job site.

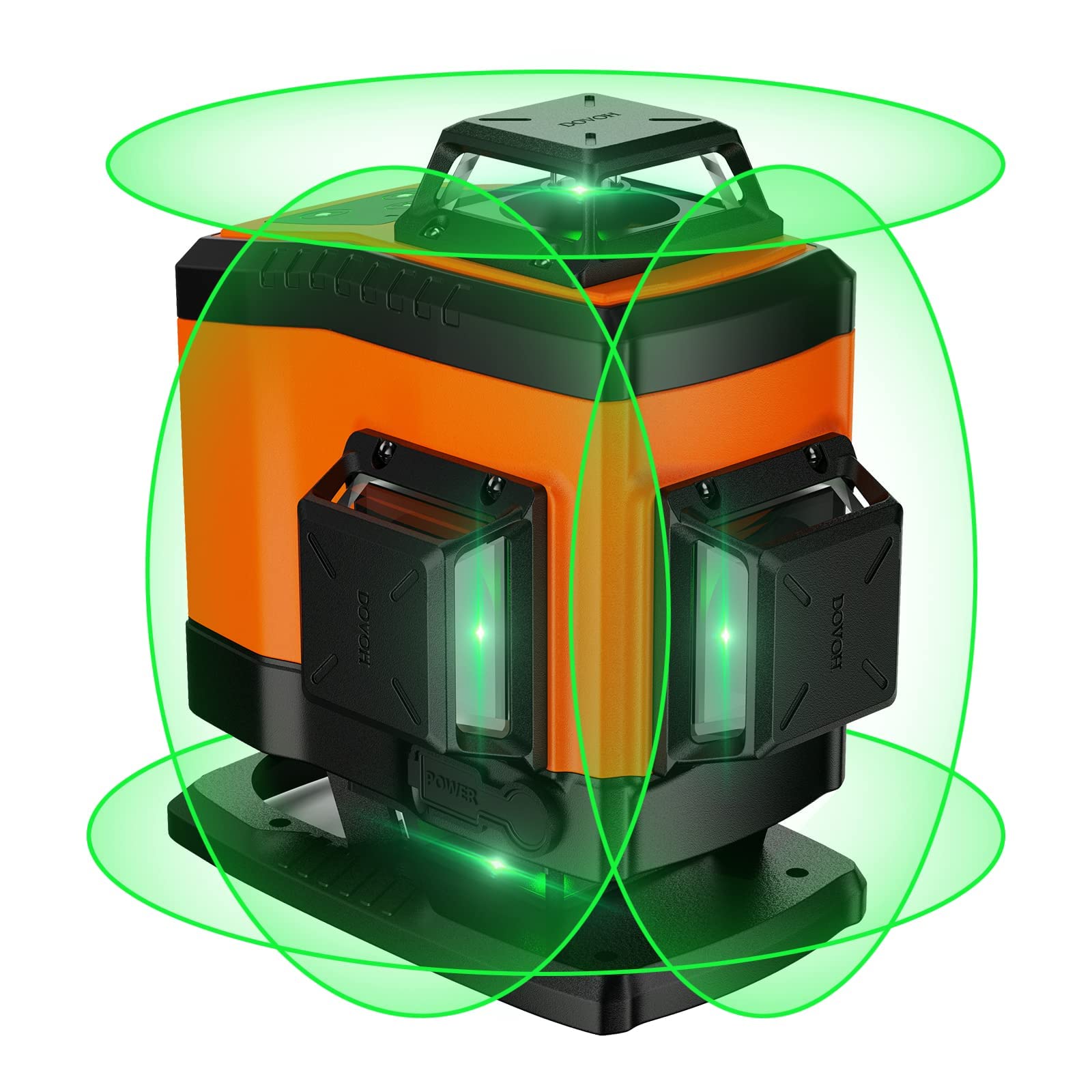

【Versatile 4D Laser Level】This 4x360 laser level is equipped with two horizontal and two vertical plane lasers. The top laser efficiently reaches close to the ceiling, while the bottom laser is perfect for floor tiling applications. This 4 plane laser level is designed to meet the diverse needs of your projects with precision and versatility, suitable for various leveling tasks, including tiling, drop ceiling installation, and square layout.
【Self-Leveling & Manual Mode】The 360 laser level will auto level on self-leveling mode. DOVOH laser level features stable precision that will maintain qualified accuracy for incline angle less than ±4°, it ensures reliable and accurate performance for various harsh environments. When working on manual mode, the laser lines can be locked at any angle for customized applications.
【Magnetic Bracket & Dual Batteries】DOVOH construction laser level include a multifunctional magnetic bracket, it can attach to a metal surface, clip on a board, or hanging on a nail. K4-360G laser level includes dual 7.4V 2600mAh lithium rechargeable batteries, which provide longer working time.
【Pulse Mode for Outdoor Use】The laser level 360 self leveling support pulse mode, it works with a 10 KHz laser level receiver. The working range can be extended to 197ft/60m under pulse mode with a laser receiver. DOVOH high accuracy laser level receiver is recommended to be used with K4-360G laser level.
Laser Class Class Ⅱ. IEC 60825-12014<1mW, 520nm
